T9×5×3 Small Magnetic Ring Inductor with High Permeability Iron Silicon Aluminum for DC-DC Converters and Switching Power Supplies

Nome da marca: ZXY
Número do modelo: ZXY-T9*5*3
MOQ: Negociável
preço: Negociável
Detalhes da embalagem: Caixa
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
Shenzhen Guangdong
Certificação:
RoHS、ISO9001、CE
Destacar:

High Permeability Iron Silicon Aluminum Magnetic Ring Inductor

,

T9×5×3 Size Toroidal Inductor

,

DC-DC Converters Ring Inductor

Descrição do produto
T9×5×3 Small Magnetic Ring Inductor
High permeability iron silicon aluminum magnetic core inductor designed for DC-DC converters and switching power supplies. This compact component (9mm outer diameter, 5mm inner diameter, 3mm thickness) delivers exceptional inductance performance with low core loss, making it ideal for high-frequency, high-current applications in demanding environments.
Key Advantages
  • High Frequency Efficiency & Low Loss: Iron silicon aluminum cores with distributed air gaps minimize core losses at switching frequencies from tens to hundreds of kHz, reducing temperature rise and improving conversion efficiency.
  • High Saturation Magnetic Density: Superior saturation flux density (>1.0T) maintains inductance under large DC bias currents, preventing magnetic saturation in Buck and Boost DC-DC circuits.
  • Excellent Temperature Stability: Stable permeability across temperature variations ensures predictable performance and long-term reliability in varying environmental conditions.
  • Superior EMI Performance: Soft saturation characteristics and high electrical resistivity effectively suppress high-frequency eddy currents and switch noise.
  • Robust Fully Shielded Design: Toroidal structure provides closed magnetic circuit with no flux leakage, preventing interference with sensitive components.
  • Compact & Cost-Effective: Small T9×5×3 footprint delivers superior electrical performance in space-constrained applications.
Performance Characteristics
Category Characteristic Description / Value Benefit
Core Material Composition Iron Silicon Aluminum (FeSiAl / Sendust) Powder Core Excellent balance of high saturation flux, low core loss, and good temperature stability
Core Material Effective Permeability (μe) Typically 26μ, 60μ, 75μ, 90μ, 125μ Provides range of inductance options for different circuit requirements
Electrical Performance High Saturation Flux Density (Bsat) > 1.0 Tesla (typically ~1.05T) High resistance to DC bias, prevents core saturation under high current
Electrical Performance Low Core Loss Excellent high-frequency loss characteristics Minimizes energy loss and temperature rise at switching frequencies
Physical & Reliability Fully Shielded Structure Closed-loop toroidal magnetic path Virtually no magnetic flux leakage, prevents interference
Physical & Reliability High Curie Temperature > 500°C Maintains magnetic properties beyond normal operating temperatures
Application Advantages Operating Frequency Range 50 kHz to > 1 MHz Suitable for modern high-frequency switching power supplies
Application Advantages Temperature Stability -55°C to +125°C+ Consistent performance under varying ambient conditions
Product Images

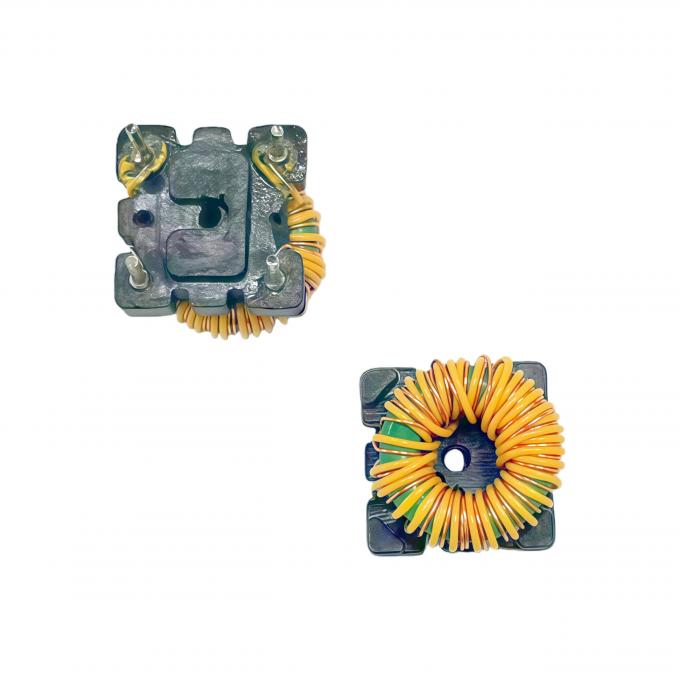

T9×5×3 magnetic ring inductor close-up view T9×5×3 Small Magnetic Ring Inductor with High Permeability Iron Silicon Aluminum for DC-DC Converters and Switching Power Supplies 1 T9×5×3 Small Magnetic Ring Inductor with High Permeability Iron Silicon Aluminum for DC-DC Converters and Switching Power Supplies 2 T9×5×3 Small Magnetic Ring Inductor with High Permeability Iron Silicon Aluminum for DC-DC Converters and Switching Power Supplies 3 T9×5×3 Small Magnetic Ring Inductor with High Permeability Iron Silicon Aluminum for DC-DC Converters and Switching Power Supplies 4
