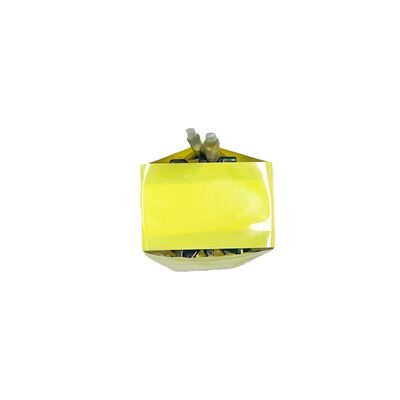

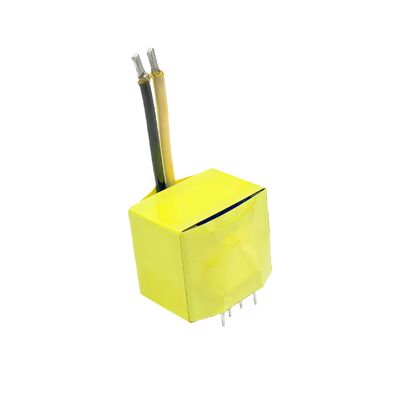

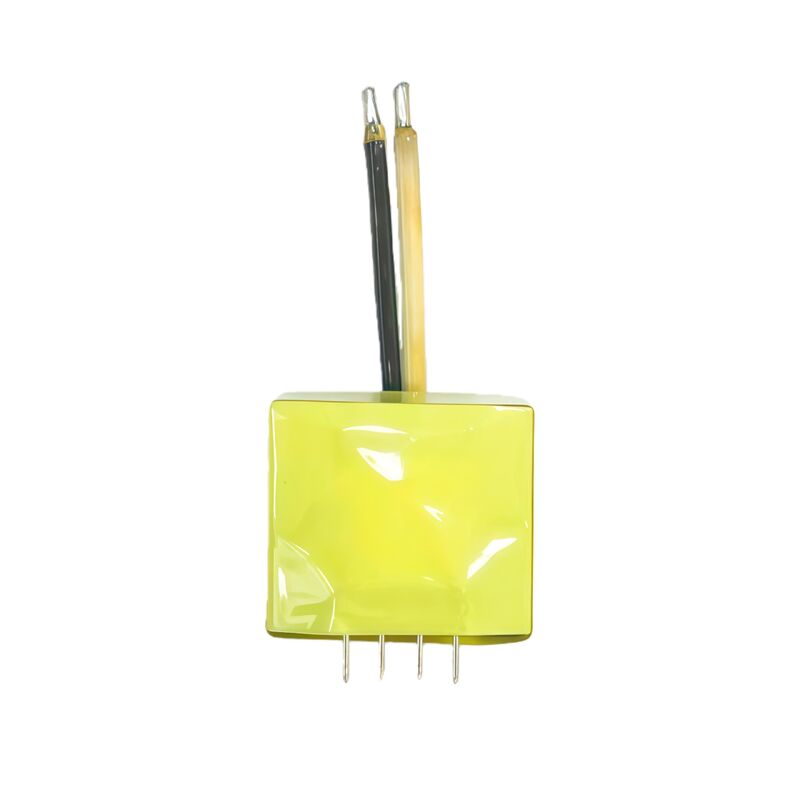

Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies

Nome da marca: ZXY
Número do modelo: PQ2018
MOQ: Negociável
preço: Negociável
Detalhes da embalagem: Caixa
Informações detalhadas
Descrição do produto
Informações detalhadas
Lugar de origem:
Shenzhen Guangdong
Certificação:
RoHS、ISO9001、CE
Destacar:

4-pin High Frequency Transformer

,

Ferrite Core Switching Transformer

,

High Efficiency Ferrite Transformer

Descrição do produto
Factory Direct Sale PQ2018 High Frequency Transformer
Factory direct sales PQ2018 high-frequency transformer featuring 4-pin ferrite core design, optimized for switch mode power supplies (SMPS). This transformer delivers low loss, high efficiency, and excellent electromagnetic compatibility for applications in LED drivers, industrial power supplies, communication equipment, and consumer electronics. Custom electrical parameters and structural modifications available with competitive pricing and stable supply chain.
Core Features
  • High Performance Ferrite Core: Premium low-loss ferrite material ensures stable operation at high frequencies (tens of kHz to hundreds of kHz) for efficient energy conversion and reduced temperature rise
  • 4-Pin Pin Design: Structurally stable configuration enables automated soldering and easy PCB installation with reliable electrical connections and mechanical support
  • Excellent Electrical Characteristics: Optimized design with high magnetic permeability, low leakage inductance, and minimal distributed capacitance enhances power supply efficiency, stability, and EMC performance
  • Wide Application Range: Specifically designed for switching power supply topologies (flyback, forward, etc.) suitable for AC-DC power supplies, LED drivers, industrial control systems, and communication modules
  • Factory Direct Customization: Direct manufacturer support for custom electrical parameters including turns ratio, inductance, and insulation levels with cost-effective pricing and bulk supply capabilities
Performance Characteristics
Feature Category Performance Characteristics
Core & Material • High-performance Ferrite Core
• Low Core Loss at high frequencies
• High magnetic permeability for efficient energy transfer
Electrical Performance • Optimized for high-frequency switching (tens to hundreds of kHz)
• Low Leakage Inductance for improved efficiency and reduced stress
• Low Inter-winding Capacitance for better EMI/EMC performance
• High Insulation Resistance and breakdown voltage (can be specified)
Design & Construction • 4-pin through-hole design for robust PCB mounting
• Stable mechanical structure with good heat dissipation
• Compact PQ2018 form factor saves board space
Reliability & Application • High Efficiency conversion, reducing overall system thermal load
• Excellent Thermal Stability over operating temperature range
• Designed for Switching Mode Power Supplies (SMPS) like Flyback, Forward converters
• Suitable for LED Drivers, Industrial Controls, Telecom, and Consumer Electronics
Customization & Value • Factory-direct customization of turns ratio, inductance, and insulation class
• Cost-effective due to eliminated middleman margins
• Reliable supply chain support for both prototype and mass production
Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 0 Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 1 Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 2 Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 3
Other Recommended Products
Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 4
Company Profile
Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 5 Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 6 Factory Direct Sale PQ2018 High Frequency Switching Transformer with 4-pin Ferrite Core for High Efficiency Power Supplies 7
