ZXY3529 10Vrms Audio Isolation Transformer with Galvanic Isolation and Noise Reduction for Professional Audio Systems

Nome da marca:	ZXY
Número do modelo:	ZXY3529
MOQ:	Negociável
preço:	Negociável
Detalhes da embalagem:	Negociável
Condições de pagamento:	PayPal

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Huizhou Guangdong

Certificação:

Habilidade da fonte:

Negociável

Destacar:

10Vrms Audio Isolation Transformer

Galvanic Isolation Audio Transformer

Noise Reduction Audio Transformer

Descrição do produto

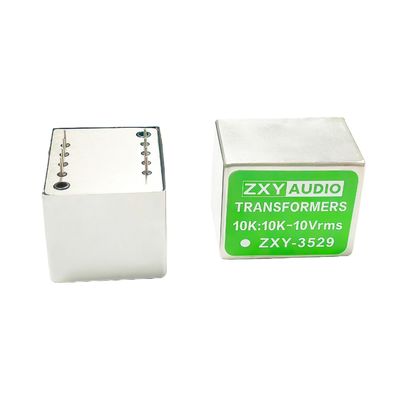

ZXY3529 10K:10K-10Vrms Audio Isolation Transformer

The ZXY3529 is a high-performance 10K:10K audio isolation transformer featuring a Permalloy iron core with high magnetic permeability, specifically designed for authentic audio signal transmission. It couples signals through electromagnetic induction while effectively blocking direct current and noise interference caused by ground loops, eliminating buzzing and current noise while protecting valuable audio equipment. With a rated level of 10Vrms, it's ideal for connecting audio sources, sound cards, and mixing consoles in professional recording, broadcasting, and high-end Hi-Fi systems.

Core Application Scenarios

1. Eliminate System Grounding Loop Noise

When multiple audio devices are connected together, potential differences between devices can create ground loops, resulting in 50/60Hz low-frequency humming. The ZXY3529, connected in series within the signal chain, provides electrical isolation to completely cut ground loop paths and eliminate noise.

2. Connect Unbalanced and Balanced Devices

The transformer enables balanced-unbalanced conversion when placed between unbalanced outputs and balanced inputs, providing isolation while transmitting audio signals and suppressing noise from long cable runs.

3. Protect Equipment and Eliminate DC Offset

The transformer blocks DC components that could damage input circuits or cause low-frequency distortion, allowing only pure audio AC signals to pass through for reliable equipment protection.

4. Passive DI Box Solution

While not an ideal impedance match, the ZXY3529 can serve as a simple passive DI box for instrument signals, achieving signal conversion and isolation while eliminating stage ground noise.

5. Vinyl Turntable Signal Purification

When connected after phono outputs, the transformer provides electrical isolation from digital devices or amplifiers, blocking RF interference and power ground noise for cleaner analog playback.

Performance Characteristics

Category	Specification / Feature
Model	ZXY3529
Type	Audio Isolation / Signal Transformer
Impedance Ratio	10,000 ohms : 10,000 ohms (10K:10K)
Core Material	Permalloy (High magnetic permeability, low core loss)
Rated Level	10 Vrms
Primary Function	Galvanic Isolation to break ground loops and eliminate hum & buzz
Key Benefit 1	Noise & Interference Reduction: Blocks DC bias and common-mode RFI/EMI noise
Key Benefit 2	Equipment Protection: Isolates connected gear, preventing potential damage from ground faults
Key Benefit 3	Signal Integrity: Permalloy core ensures minimal distortion and excellent low-frequency response
Typical Applications	Connecting audio interfaces, mixers, preamps, DI boxes, DACs, and other line-level consumer/pro-audio equipment
