High Quality Chip Inductor Shielded Inductor SMD Type Wire Wound Chip Power Inductor

Nome da marca:	ZXY
Número do modelo:	ZXY-750
MOQ:	Negotiable
preço:	Negociável
Detalhes da embalagem:	Carton
Condições de pagamento:	T/T

Informações detalhadas

Descrição do produto

Informações detalhadas

Place of Origin:

Huizhou.China

Certificação:

RoHS、ISO9001、CE

Size:

According to your needs

Product name:

SMD Chip Inductor

Origin:

China

Specifications:

Customized

Mounting:

Feature:

High Efficiency

Descrição do produto

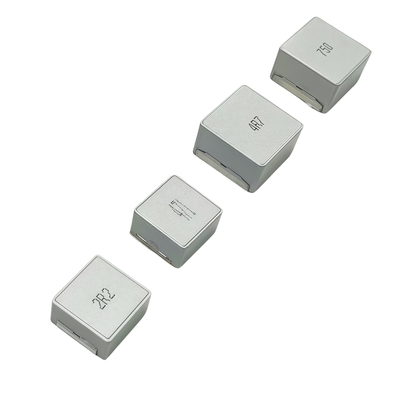

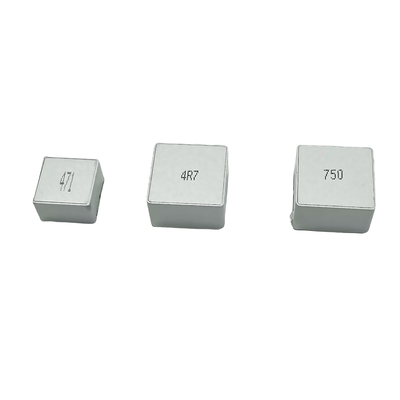

High Quality Chip Inductor Shielded Inductor SMD Type Wire Wound Chip Power Inductor

1.Product Description

This high-quality shielded SMD wire-wound power inductor features a compact chip design with robust construction, offering excellent EMI suppression and high current handling for demanding power applications. Its precision wire-wound coil and magnetic shielding ensure stable inductance, low DC resistance (DCR), and minimal core loss, making it ideal for DC-DC converters, power supplies, and noise-sensitive circuits. Available in various inductance values and current ratings, this shielded inductor provides reliable performance in automotive, industrial, and consumer electronics where space-saving and efficiency are critical. The durable SMD package ensures easy PCB mounting and superior thermal management.

Key Features:

✔ Shielded design for reduced EMI interference

✔ High-current handling with low DCR

✔ Wire-wound construction for stable inductance

✔ Compact SMD footprint for space-constrained designs

✔ Wide operating temperature range

Perfect for switching regulators, filtering circuits, and high-frequency power applications requiring noise suppression and efficiency.

SMD Chip Inductor, as the core passive component in electronic circuits, undertakes multiple key functions with its compact chip design and efficient electromagnetic characteristics

1. Noise filtering and signal purification: By blocking the characteristics of high-frequency alternating current, it effectively filters high-frequency noise and electromagnetic interference (EMI) in circuits, especially in audio circuits and communication modules, which can reduce signal distortion and ensure the clarity of audio and data transmission.

2. Current stability and ripple suppression: In power circuits (such as DC-DC converters and fast charging modules), the characteristic of inductance "obstructing current changes" is utilized to smooth current fluctuations, suppress output voltage ripple, and provide stable DC power supply for sensitive components such as chips and sensors.

3. Energy storage and release: In high-frequency switch circuits, temporary energy storage and release are achieved through magnetic field energy storage, combined with capacitors and other components to form a filtering network, improving power conversion efficiency. This is commonly used in fast charging circuits for smartphones and laptops.

4. Impedance matching and signal coupling: In RF circuits and antenna modules, impedance between different circuits is matched by adjusting inductance values to reduce signal reflection loss and ensure efficient transmission of wireless and high-frequency signals; At the same time, signal coupling between circuits can be achieved, isolating DC components and only transmitting AC signals.

2.Performance Characteristics

Parameter	Performance Characteristics	Benefits
Type	Shielded SMD Wire-Wound Power Inductor	Compact size, EMI suppression, high reliability
Inductance Range	1uH to 1000uH (customizable)	Wide application coverage from high-frequency to power circuits
Current Rating	Up to 20A (depending on model)	Supports high-power applications without saturation
DC Resistance (DCR)	Ultra-low (milliohm range)	Minimizes power loss and heat generation
Shielding Material	Ferrite or alloy magnetic shielding	Excellent EMI suppression and reduced interference
Frequency Range	Up to 5MHz (depending on inductance)	Suitable for high-frequency switching applications
Construction	Precision wire-wound copper coil with magnetic core	High efficiency and stable inductance over temperature/current variations
Mounting Type	SMD (Surface Mount Device)	Easy PCB assembly, space-saving design
Applications	DC-DC converters, power supplies, automotive electronics, industrial systems, RF circuits	Versatile solution for power management and noise-sensitive designs

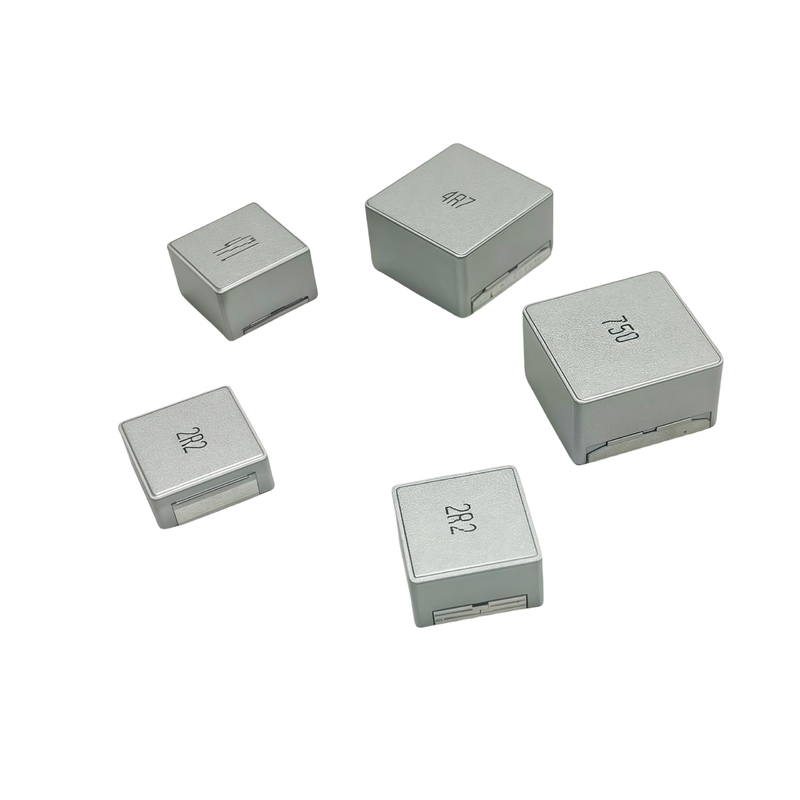

High Quality Chip Inductor Shielded Inductor SMD Type Wire Wound Chip Power Inductor 0
